| No. | Symbol | Description |
| 1 | VOCM | Common voltage |
| 2-3 | VDD | Power Voltage for digital circuit |
| 4 | NC | No connection |
| 5 | Reset | Global reset pin |
| 6 | STBYB | Standby mode, Normally pulled high STBYB = “1”, normal operation STBYB= “0”, timing controller, source driver will turn off, all output are High-Z |
| 7 | GND | Ground |
| 8 | RXIN0- | -LVDS differential data input |
| 9 | RXIN0+ | + LVDS differential data input |
| 10 | GND | Ground |
| 11 | RXIN1- | -LVDS differential data input |
| 12 | RXIN1+ | + LVDS differential data input |
| 13 | GND | Ground |
| 14 | RXIN2- | -LVDS differential data input |
| 15 | RXIN2+ | + LVDS differential data input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | -LVDS differential clock input |
| 18 | RXCLKIN+ | + LVDS differential data input |
| 19 | GND | Ground |
| 20 | RXIN3- | -LVDS differential data input |
| 21 | RXIN3+ | + LVDS differential data input |
| 22 | GND | Ground |
| 23-24 | NC | No connection |
| 25 | GND | Ground |
| 26 | NC | No connection |
| 27 | DIMO | Backlight CABC controller signal output |
| 28 | SELB | 6bit/8bit mode select |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31-32 | LED- | LED Cathode |
| 33 | L/R | Horizontal inversion |
| 34 | U/D | Vertical inversion |
| 35 | VGL | Gate OFF Voltage |
| 36 | CABCEN1 | CABC H/W enable |
| 37 | CABCEN0 | CABC H/W enable |
| 38 | VGH | Gate ON Voltage |
| 39 | LED+ | Anode of LED |
| 40 | LED+ | Anode of LED |
Item | Contents |

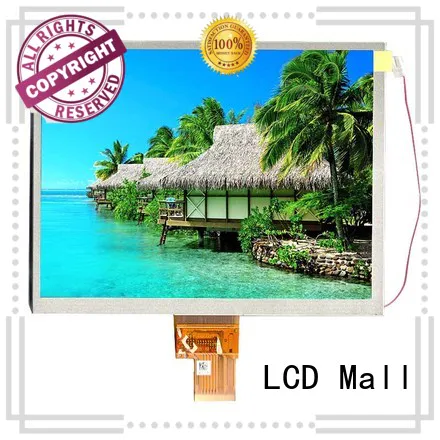

| Size | 8.0 inch |
| Resolution | 800(horizontal)*1280(Vertical) |
| LCM (W x H x D) (mm) | 192.8*116.9*6.4 |
| Active Area(mm) | 176.64*99.36 |
| Pixel pitch (mm) | 0.1656*0.1725 |
| Interface | LVDS |
| Pixel Configuration | R.G.B.-Stripe |
| LCD Driver IC | HX8696+HX8282 |
| CTP Driver IC | TBD |
| Viewing Direction | 12 O' CLOCK |
| With /Without TSP | Can match RTP/CTP |
| Weight (g) | TBD |
| LED Numbers | 36 LEDs |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 80 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VDD | 3.0 | 3.3 | 3.6 | V | |
| Current for LED Backlight | IDD | 240 | mA |
