DESCRIPTION

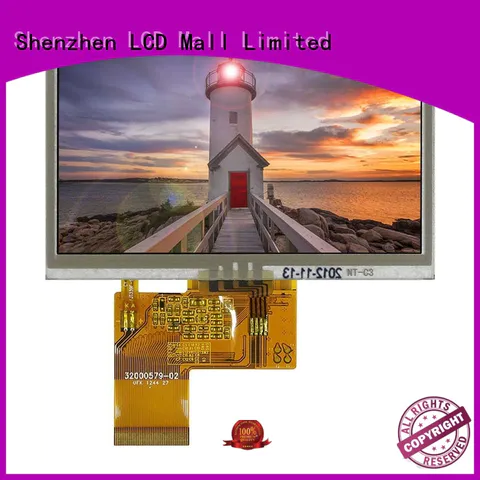

LM043NWQ10HS-DR02 is a 4.3 inch TFT display with resistive touch.The model is featured with 24BIT RGB interface;This 4.3" TFT Touch Screen Module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. It is AT043TN24 equivalent with high brightness module.
| Pin No. | Symbol | Description | |
| 1 | VLED- | Cathode of LED backlight | |
| 2 | VLED+ | Anode of LED backlight | |
| 3 | GND | Power ground | |
| 4 | VDD | Power supply | |
| 5~12 | R0~R7 | 8-bit digital Red data input, | |
| 13~20 | G0~G7 | 8-bit digital Green data input, | |
| 21~28 | B0~B7 | 8-bit digital Blue data input, | |
| 29 | GND | Power ground | |
| 30 | DCLK | Clock signal; latching data at the falling edge | |
| 31 | DISP | Display control / standby mode selection. DISP = “Low” : Standby; DISP = “High” : Normal display(Default) | |
| 32 | HSYNC | Horizontal sync signal; negative polarity | |
| 33 | VSYNC | Vertical sync signal; negative polarity | |
| 34 | DE | Data input enable. Active High to enable the data input. | |
| 35 | NC | No connection. | |
| 36 | GND | Power ground | |
| 37 | XR | TP pin | |
| 38 | YT | TP pin | |
| 39 | XL | TP pin | |
| 40 | YB | TP pin | |
Item | Dimension | Unit | ||||||
| Size | 4.3inch | inch | ||||||
| Dot Matrix | 480*RGB*272(TFT) | dots | ||||||
| Module dimension | 105.5*67.2*4.05 | mm | ||||||
| Active area | 95.04*53.86 | mm | ||||||
| Dot pitch | 0.198*0.198 | mm | ||||||
| LCD type | TFT/TRANSMISSIVE | |||||||
| View Direction | 12 O’CLOCK | |||||||
| Gray Scale Inversion Direction | 6 O’CLOCK | |||||||
| Backlight Type | LED, Normally White | |||||||
| LCD Controller IC | ILI6480BQ | |||||||
| Pcap Controller IC | ||||||||
| LCD Interface | 24BIT RGB | |||||||
| Pcap Interface | ||||||||
| Touch Panel | Resistive | |||||||
| Surface | ANTI-GLARE | |||||||
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VCC | 3.0 | 3.3 | 3.6 | V | |
| Supply current (One LED) | ILED | 40 | mA |
