DESCRIPTION

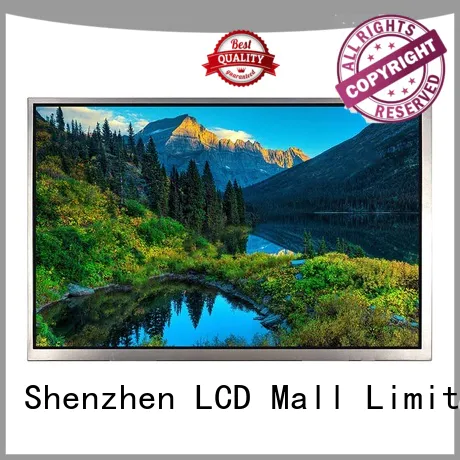

LM101PWS03NS is a 10.1 inch TFT-LCD module with 24bit RGB interface.The resolution is 1024 x 600 pixels.The viewing direction is 12 o’clock.
LM101PWS03NS typical brightness is 350cd/m2 and contrast ratio: 600:1. LM101PWS03NS is very suitable for HMI (Human-machine Interaction) applications or POS system, etc.
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For LCM | VDD | -0.3 | 5 | V | ||
| Supply Current For LCM | IDD | 30 | mA |
