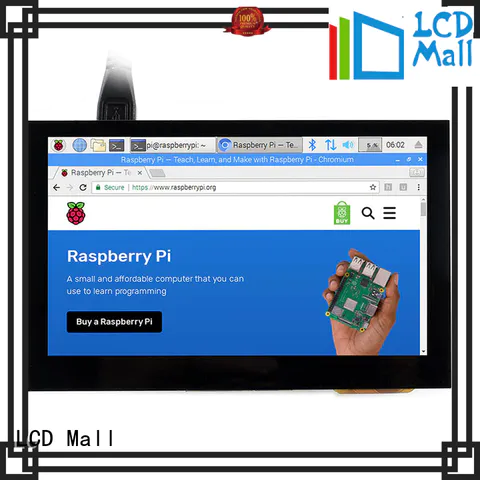

| No. | Symbol | Description |
| 1-3 | LED+ | Power supply for LED |
| 4 | NC | No Connect |
| 5-8 | LED- | Power supply for LED |
| 9-10 | GND | Ground |
| 11 | MIPI_2P | MIPI data positive signal(2P) |
| 12 | MIPI_2N | MIPI data negative signal(2N) |
| 13 | GND | Ground |
| 14 | MIPI_1P | MIPI data positive signal(1P) |
| 15 | MIPI_1N | MIPI data negative signal(1N) |
| 16 | GND | Ground |
| 17 | MIPI_CLKP | MIPI data positive signal(CLKP) |
| 18 | MIPI_CLKP | MIPI data negative signal(CLKN) |
| 19 | GND | Ground |
| 20 | MIPI_0P | MIPI data positive signal(0P) |
| 21 | MIPI_0N | MIPI data negative signal(0N) |
| 22 | GND | Ground |
| 23 | MIPI_3P | MIPI data positive signal(3P) |
| 24 | MIPI_3N | MIPI data negative signal(3N) |
| 25 | GND | Ground |
| 26 | VDDIO | Logic power 1.8V |
| 27 | RESET | Reset Pin |
| 28 | GND | Ground |
| 29 | VDDIO | Logic power 1.8V |
| 30 | VDD | Logic power 3.3V |
| 31 | VDD | Logic power 3.3V |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 70 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VDD | 2.8 | 3.3 | 3.6 | V | |
| Current for LED Backlight | If | 140 | mA |
