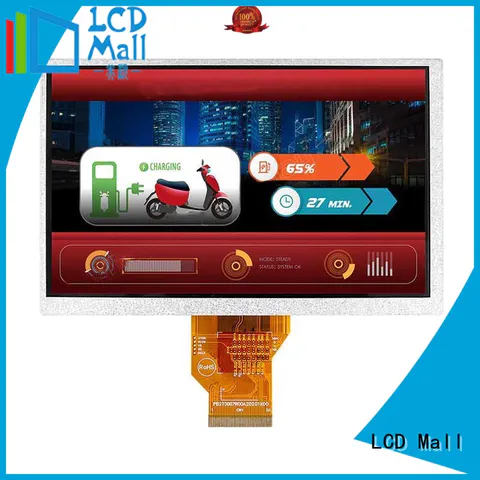

| No. | Symbol | Description |
| 1-2 | LED+ | Anode of LED backlight |
| 3-4 | LED- | Cathode of LED backlight |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for digital circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data input enable |
| 10 | VS | Vertical sync input |
| 11 | HS | Horizontal sync input |
| 12-19 | B7-B0 | Blue data |
| 20-27 | G7-G0 | Green data |
| 28-35 | R7-R0 | Red data |
| 36 | GND | Power Ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VDD | 3.0 | 3.3 | 3.6 | V | |
| Supply Current For LCM | IDD | 30 | mA |
