LCD Mall thermostat tft display module hot-sale out-door application

Storage Temp: LM043NWQ09HS

LCD Shape: 480*272

Backlight: 550nits

Surface Luminance: 4.3inch

LCD TYPE: TFT/TRANSMISSIVE

Viewing Direction: 12 O'clock

LCM Interface: 24BIT RGB

LCD Driver IC: ILI6480BQ

Price: Get Latest Price

Get the latest price

Inquire Online

这里可以自定义设置

DESCRIPTION

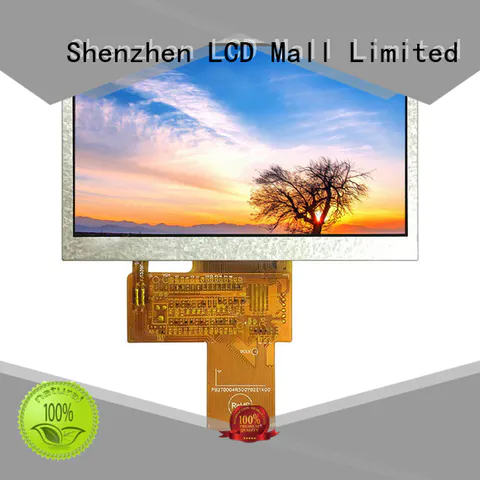

LM043NWQ09HS is a 4.3 inch TFT display.The model is featured with 24BIT RGB interface;This 4.3" TFT Touch Screen Module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. It is AT043TN25 equivalent module.

DRAWING

LCM Mechanical Diagram

SPECIFICATIONS

Pin No.	Symbol	Description
1	LED-	Cathode of LED backlight
2	LED+	Anode of LED backlight
3	GND	Power ground
4	VDD	Power supply
5~12	R0~R7	Red data bus
13~20	G0~G7	Green data bus
21~28	B0~B7	Blue data bus
29	GND	Power ground
30	PCLK	Clock pin of serial interface
31	DISP	Display control / standby mode selection.
		DISP = “Low” : Standby;
		DISP = “High” : Normal display(Default)
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	DE	Data enable signal for RGB interface operation
35	NC	No connect
36	GND	Power ground
37	NC(XR)	No connect
38	NC(YD)	No connect
39	NC(XL)	No connect
40	NC(YU)	No connect

Item	Dimension	Unit
Size	4.3inch	inch
Dot Matrix	480RGB272(TFT)	dots
Module dimension	105.567.22.9	mm
Active area	95.04*53.86	mm
Dot pitch	0.198*0.198	mm
LCD type	TFT/TRANSMISSIVE
View Direction	12 O’CLOCK
Gray Scale Inversion Direction	6 O’CLOCK
Backlight Type	LED, Normally White
LCD Controller IC	ILI6480BQ
Pcap Controller IC
LCD Interface	24BIT RGB
Pcap Interface
Touch Panel
Surface	ANTI-GLARE

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20		70	℃
Storage Temperature	TST	-30		80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Input Power	VCC		3.0	3.3	3.6	V
Supply current (One LED)	ILED				20	mA
