DESCRIPTION

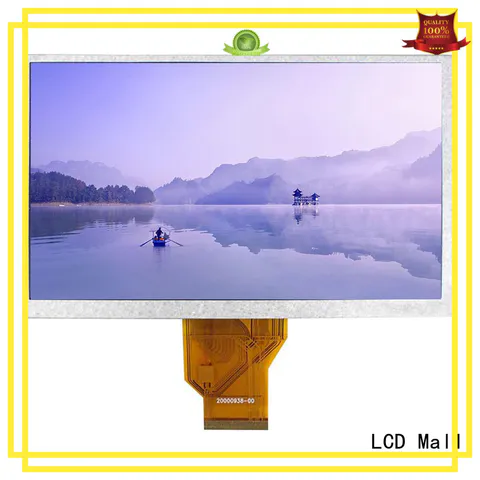

LM070SWV06NS is a 7.0 inch TFT LCD Display .The model is featured with RGB interface;12 O'CLOCK.
The Backlight Type is 21-LED WHITE.LM070SWV06NS is equivalent of AT070TN94.It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires display in high quality and colorful image.
| No. | Symbol | Description |
| 1-2 | LED+ | Anode of LED backlight |
| 3-4 | LED- | Cathode of LED backlight |
| 5 | GND | Power ground |
| 6 | VCOM | Common voltage |
| 7 | DVDD | Power for digital circuit |
| 8 | MODE | DE/SYNC mode select |
| 9 | DE | Data input enable |
| 10 | VS | Vertical sync input |
| 11 | HS | Horizontal sync input |
| 12-19 | B7~B0 | Blue data |
| 20-27 | G7~G0 | Green data |
| 28-35 | R7~R0 | Red data |
| 36 | GND | Power ground |
| 37 | DCLK | Sample clock |
| 38 | GND | Power Ground |
| 39 | L/R | Left / right selection |
| 40 | U/D | Up/down selection |
| 41 | VGH | Gate ON Voltage |
| 42 | VGL | Gate OFF Voltage |
| 43 | AVDD | Power for Analog Circuit |
| 44 | RESET | Global reset pin |
| 45 | NC | No connection |
| 46 | VCOM | Common Voltage |
| 47 | DITHB | Dithering function |
| 48 | GND | Power Ground |
| 49 | NC | No connection |
| 50 | NC | No connection |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -20 | 70 | ℃ | ||
| Storage Temperature | TST | -30 | 80 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Supply Voltage For LCM | VDD | -0.3 | 5 | V | ||
| Supply Current For LCM | IDD | 30 | mA |
