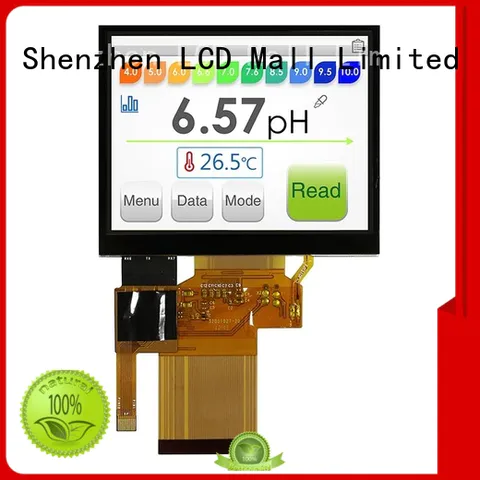

3.5" LCD Display With Capactive Touch LM035CQ08NS-DC01

这里可以自定义设置

DESCRIPTION

LM035CQ08NS-DC01 is a 3.5 inch TFT LCD Display with capactive touch.The model is featured with 24BIT RGB+SPI interface; This 3.5" TFT Touch Screen Module can be used in embedded systems, POS，industrial device, security and hand-held equipment which require display in high quality and colorful image.

DRAWING

LCM Mechanical Diagram

SPECIFICATIONS

Pin No.	Symbol	Description
1	LEDK	Cathode of LED backlight
2	LEDK	Cathode of LED backlight
3	LEDA	Anode of LED backlight
4	LEDA	Anode of LED backlight
5	NC	No connect
6	NC	No connect
7	NC	No connect
8	RESET	RESET PIN
9	SPENA	Chip select of serial interface
10	SPCLK	Clock pin of serial interface
11	SPDAT	Data input pin of serial interface
12~19	B0~B7	Blue data bus
20-27	G0~G7	Green data bus
28-35	R0~R7	Red data bus
36	HSYNC	Horizontal sync signal; negative polarity
37	VSYNC	Vertical sync signal; negative polarity
38	DCLK	Clock signal; latching data at the falling edge
39	NC	No connect
40	NC	No connect
41	VDD	Power supply
42	VDD	Power supply
43-47	NC	No connect
48	SEL2	Interface mode select
49	SEL1	Interface mode select
50	SEL0	Interface mode select
51	NC	No connect
52	DEN	Display enable pin from controller
53	GND	Power ground
54	GND	Power ground

Item	Dimension	Unit
Size	3.5inch	inch
Dot Matrix	320RGB240(TFT)	dots
Module dimension	76.9063.905.10	mm
Active area	70.08*52.56	mm
Dot pitch	0.219*0.219	mm
LCD type	TFT/TRANSMISSIVE
View Direction	12 O' CLOCK
Gray Scale Inversion Direction	6 O' CLOCK
Backlight Type	LED, Normally White
LCD Controller IC	HX8238D
Pcap Controller IC	FT5446DQS
LCD Interface	24BIT RGB+SPI
Pcap Interface	I2C
Touch Panel	Capacitive
Surface	ANTI-GLARE

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20		70	℃
Storage Temperature	TST	-30		80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Input Power	VCC		3.0	3.3	3.6	V
Supply current (One LED)	ILED				30	mA
