| No. | Symbol | Description |
| 1 | NC | No connect |
| 2 | H-GND | High Speed Ground |
| 3 | LANEI-N | Complement Signal Link Lane 1 |
| 4 | LANEI-P | True Signal Link Lane 1 |
| 5 | H-GND | High Speed Ground |
| 6 | LAENO-N | Complement Signal Link Lane 0 |
| 7 | LAENO-P | True Signal Link Lane 0 |
| 8 | H-GND | High Speed Ground |
| 9 | AUX-CH-N | True Signal Auxiliary Channel |
| 10 | AUX-CH-P | Complement Signal Auxiliary Channel |
| 11 | H-GND | High Speed Ground |
| 12 | LCD-VDD | LCD logic and driver power(3.3V) |
| 13 | LCD-VDD | LCD logic and driver power(3.3V) |
| 14 | NC | No connect |
| 15 | LCD-GND | LCD logic and driver ground |
| 16 | LCD-GND | LCD logic and driver ground |
| 17 | HPD | HPD signal pin |
| 18 | BL-GND | Backlight ground |
| 19 | BL-GND | Backlight ground |
| 20 | BL-GND | Backlight ground |
| 21 | BL-GND | Backlight ground |
| 22 | BL-ENABLE | Backlight ON/OFF |
| 23 | BL-PWM-DIM | System PWM |
| 24 | NC | No connect |
| 25 | NC | No connect |
| 26 | BL-PWR | Backlight power |
| 27 | BL-PWR | Backlight power |
| 28 | BL-PWR | Backlight power |
| 29 | BL-PWR | Backlight power |
| 30 | NC | No connect |
| Item | CONTENTS | UNIT |

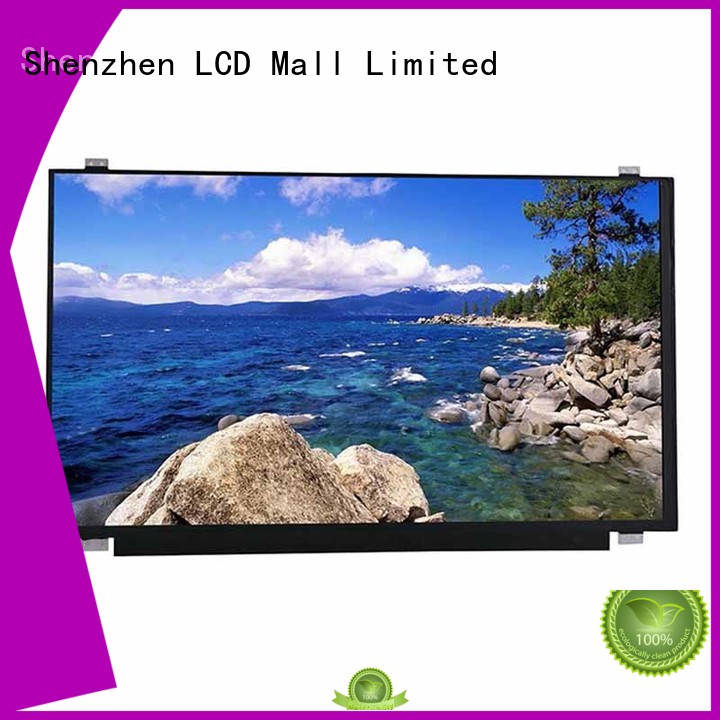

| Size | 11.6 inch | INCH |
| LCM (W x H x D) (mm) | 263.40*157.22*2.80 | mm |
| Active Area(mm) | 256.32*144.18 | mm |
| Pixel pitch (mm) | 0.1335*0.1335 | mm |
| Resolution | 1920(horizontal)*1080(Vertical) | DOTS |
| Interface | EDP | |
| LCD type | TFT/TRANSMISSIVE | |
| Display color | Normally Black | |
| Viewing Direction | ALL | |
| LCD Driver IC | TBD | |
| With /Without TSP | Without TSP | |
| LED Numbers | 40 LEDs | |
| Weight (g) | TBD |
Item | Symbol | Min | Typ | Max | Unit | |
| Operating Temperature | TOP | -10 | 60 | ℃ | ||
| Storage Temperature | TST | -20 | 70 | ℃ | ||
Item | Symbol | Condition | Min | Typ | Max | Unit |
| Input Power | VDD | 3.0 | 3.3 | 3.6 | V | |
| Current for LED Backlight | IL | 100 | mA |
