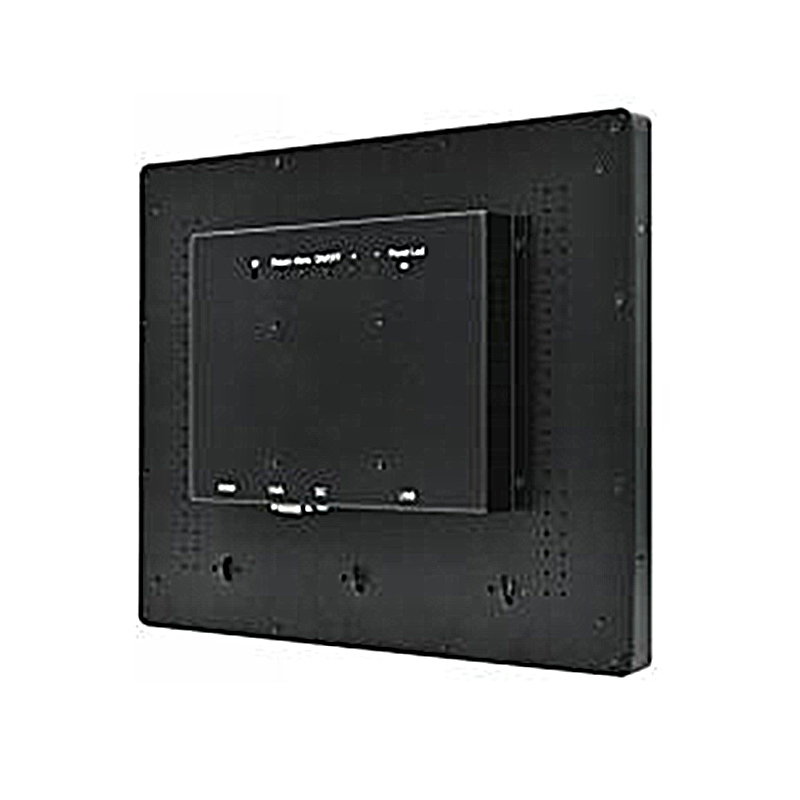

17" Industrial Capacitive Touch Monitor – 1280x1024 SXGA, 1000 Nits High Brightness, 10-Point G+G Touch, HDMI & VGA, Wall/Embedded Mount

This 17-inch industrial capacitive touch monitor combines high brightness, responsive 10-point multi-touch, and broad system compatibility for demanding embedded and control applications. The G+G capacitive touch screen supports finger and stylus input with over 50 million touches, while the 1000 cd/m² display (customizable from 300 to 1500 nits) ensures clear visibility in bright environments. With HDMI 2.0 and VGA inputs, plus support for Windows, Raspberry Pi, Android, and Linux, it’s ready for kiosks, HMI panels, and interactive terminals. Mount it via wall, embedded, or ear installation.

B站不支持收货地址

B站不支持库存规格

LCD Mall Model No: LMM170005

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

Key Features

10-Point G+G Capacitive Touch: Multi-touch support for intuitive interaction using fingers or conductive stylus. Durable >50 million touches.
High Brightness Display: 1000 cd/m² standard; customizable from 300 to 1500 cd/m² for outdoor or high-ambient-light use.
Crisp SXGA Resolution: 1280 x 1024 pixels with a 4:3 aspect ratio, ideal for industrial control and monitoring.
IPS Panel Technology: 89/89/89/89 viewing angles (CR≥10) for consistent color and clarity from almost any position.
Broad System Compatibility: Works with Windows, Raspberry Pi, Android, and Linux systems.
Flexible Connectivity: 1x HDMI 2.0, 1x VGA, 1x USB 2.0 (for touch), 1x audio interface.
Multiple Mounting Options: Wall-mounted, embedded, or ear-mounted to fit various enclosures and cabinets.
Durable & Reliable: Operates from 0°C to 50°C and stores from -20°C to 60°C; power consumption under 32W.

Technical Specifications

Parameter	Details
Panel Size	17 inches
Resolution	1280 (RGB) x 1024, SXGA
Point Spacing	0.088 x 0.264 (H x V) mm
Display Brightness	1000 cd/m² (Customizable: 300–1500 cd/m²)
Viewing Angle	89/89/89/89 (Typ.) (CR≥10)
Color Quantity	16.7M, 72% NTSC
Refresh Rate	60Hz
Contrast Ratio	1000:1
Screen Ratio	4:3
Response Time	20 (Typ.) (Tr+Td) ms
Panel Type	IPS
Operation Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Power Consumption	< 32W
Installation Method	Wall mounted, embedded, ear mounted
Reference System	Windows, Raspberry Pi, Android, Linux

Touch Screen Parameters

Parameter	Details
Touch Type	G+G Capacitor ten-point touch screen
Input Method	Use fingers or touch pens to make contact with conductors
Service Life	> 50 million times
Transmittance	> 86%
Surface Hardness	> 6H
Working Voltage	5.0V

Product Interface

Interface	Quantity
HDMI Interface	1 (HDMI 2.0)
VGA Interface	1
Audio Interface	1
USB Interface	1 (USB 2.0) – for touch
Power Socket	1 (DC 5.5*2.1)

Applications

Industrial automation and HMI control panels
Interactive kiosks and self-service terminals
Embedded computing and panel PCs
Medical and laboratory equipment
Transportation and traffic monitoring
Outdoor or high-brightness interactive signage (with customized brightness)

Customization Options

Brightness: Available from 300 to 1500 cd/m² to meet specific environmental needs.
Mounting: Standard wall, embedded, and ear mounting; custom brackets available upon request.
Touch: G+G 10-point capacitive touch standard; other touch technologies available on request.

What's in the Box

1x 17" Industrial Capacitive Touch Monitor
1x USB Touch Cable
1x Power Adapter (DC 5.5*2.1)
1x User Manual (English)
Note: HDMI and VGA cables are not included unless specified.

Why Choose This Monitor?

The LMM170006 (WCH-SM1702) delivers industrial-grade reliability with responsive 10-point capacitive touch and high-brightness performance. Its IPS panel ensures excellent color consistency, while the multiple interface and mounting options make it easy to integrate into existing systems. Whether you need an interactive display for a factory floor, an outdoor kiosk, or a control room, this 17-inch touch monitor is built to perform.
